Secure High-Performance IP KVM Extension Over 1 GbE Networks
Get more flexibility in your control room and digital workspace with Matrox® Extio 3 IP KVM extenders. Extio 3 gives AV and broadcast teams secure remote access, smooth collaboration, and quiet, clutter-free operator stations by placing computers away from the workspace. Designed for easy deployment, the Extio 3 Series supports scalable KVM matrix systems over standard IP networks.
Mediasys, a trusted 25-year Matrox partner in the Middle East, offers full support and availability across the region.
Seamless switching
Low Latency
Long product lifecycle
HEVC 4:4:4 codec

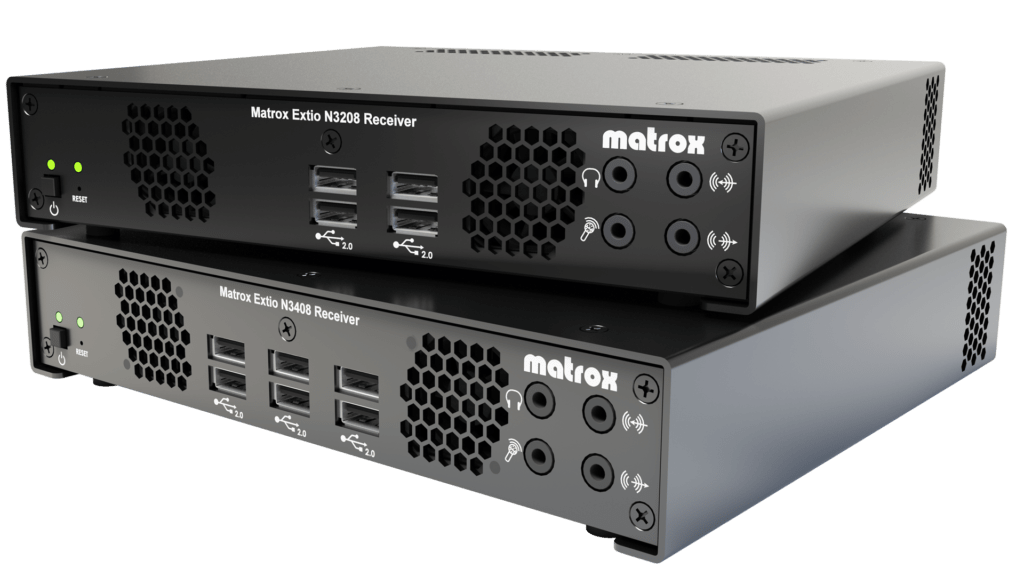

Connect Further and Faster with Matrox® Extio 3
The Extio 3 4K KVM extender delivers high-quality 4K60 4:4:4 video at low bitrates over standard 1 GbE networks. With four DisplayPort™ connectors, it supports multi-display desktops and extends video, keyboard, mouse, USB 2.0, audio, and RS232 signals using a single pair of KVM transmitter and receiver units. Whether over LAN, WAN, or the internet, Extio 3 provides a flexible and scalable KVM matrix over IP for professional AV, broadcast, and control room environments.

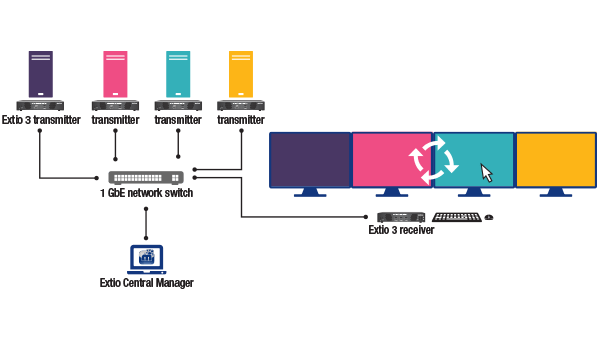

Increase Operator Efficiency with Seamless Mouse Switching
Extio 3 lets operators view and control up to four source computers from any receiver unit using a single keyboard and mouse. Effortlessly switch control between systems by moving your mouse across a multi-screen desktop.
With Aggregator Mode, you can navigate from one desktop to the next simply by moving the mouse, streamlining multi-system operations. For even greater efficiency, the Tile View feature allows up to four separate systems to be displayed simultaneously on a single 4K or Full HD monitor, giving operators complete visibility and control.
Secure KVM Control
Extio 3 ensures sensitive data stays protected with built-in security features—no software installation is needed on the source systems. Key security features include:
-
AES Encryption – Encrypts all signals between transmitters and receivers for secure communication.
-
User Management – Integrates with Microsoft® Active Directory® for password and user access control.
-
Network Protection – Supports 802.1x port authentication and IGMPv3 to prevent unauthorized devices from connecting.
-
Activity Monitoring – Syslog support allows tracking and recording of KVM device and user activity.
Engineered for 24/7 Reliability

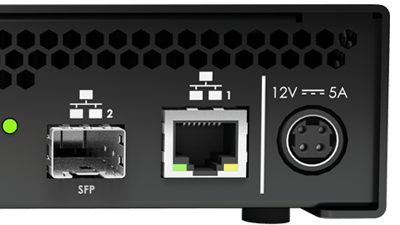

Extio 3 is designed for continuous, mission-critical operations. Its distributed architecture eliminates single points of failure by storing device settings and connectivity rules in each transmitter and receiver. For added resilience, Extio 3 units feature dual network interfaces that can be configured for link redundancy, ensuring uninterrupted operation in demanding 24/7 environments.
