Seamless Transition from SDI to IP Workflows

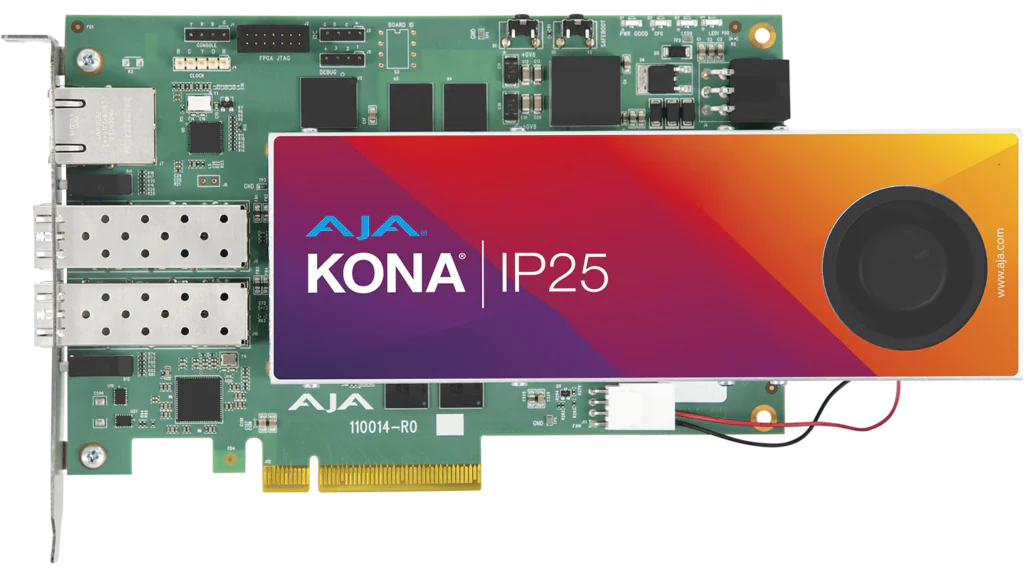

The KONA IP25 combines the power, reliability, and ease of use of the KONA family, making it a seamless solution for transitioning from SDI to SMPTE ST 2110 workflows. This 8-lane PCIe Gen 4.0 IP I/O card supports bidirectional uncompressed video, ensuring high-performance IP video processing. It features two SFP cages supporting 10/25 Gigabit Ethernet (GigE) SFPs and a 1 GigE RJ-45 port for control.
Designed for SMPTE ST 2110 processing, the KONA IP25 includes onboard PTP synchronization and NMOS control. It operates like any KONA card, handling control tasks independently to minimize host PC load. ST 2110 Configuration and Control can be managed via In-Band (SFP media network) or Out-of-Band (RJ-45 control network).
On the desktop, KONA IP25 works seamlessly with Apple Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, AJA Control Room, and other leading creative tools, offering a familiar and efficient workflow. With AJA Control Panel enhancements, users can easily configure capture and playout, ensuring a smooth expansion into ST 2110 environments.
For developers, the KONA IP25 leverages the same AJA SDK as other KONA baseband I/O cards, providing an easy path to building custom SMPTE ST 2110 applications.
| Feature | Details |
|---|---|
| Media Transport Interfaces | Uncompressed media (SMPTE ST 2110-20, 30, 40), PTP |
| Configuration & Control | 2x SFP28 Cages (redundant only), Supports 10 GigE and 25 GigE SFPs, RJ-45 1 GigE Interface |
| Input Uncompressed IP | SMPTE ST 2110-20 Video, YCbCr 4:2:2 10-bit, 4-channel input (format dependent) |
| Audio Input | 4 stream input, 4 to 16-channel audio per stream, 24-bit per channel, 48 kHz synchronous |
| Output Uncompressed IP | SMPTE ST 2110-20, YCbCr 4:2:2 10-bit, 4-channel (format dependent) |
| Audio Output | 4 stream output, 4 to 16-channel audio per stream, 24-bit per channel, 48 kHz synchronous |
| SDR / HDR | Supports SDR/HDR Transfer Characteristics, Colorimetry, and Luminance |
| Downstream Keyer | Supports graphics up to UltraHD with alpha channel over video |
| IP Clock | PTPv2 SMPTE ST 2059-2 / IEEE 1588-2008 |
| Electrical Interface | 8-lane PCIe 4.0 |
| Noise | <50dBA (A-weighted at 1m in free air) |
| Regulatory Compliance | RoHS 3, IEC 62368-1: 2014 2nd Edition |
| Size | 247.7 x 15.9 x 98.6 mm (9.75" x 0.63" x 3.88") |
| Weight | 0.4kg (0.6lbs) |
| Power | 40W typical, 50W maximum |
| Environment | Operating Temperature: 0 to 40°C (32 to 104°F) |
- ST 2110-20 Video: Supports up to 2 Rx and 2 Tx simultaneously
- 10-bit 4:2:2 up to 3840x2160p
- 12-bit 4:4:4 up to 2048x1080p (coming soon)
- SDR/HDR support for Transfer Characteristics, Colorimetry, and Luminance via SDP file
- ST 2110-30 Audio: Supports up to 2 Rx and 2 Tx simultaneously
- Up to 16 channels of audio per stream
- ST 2110-40 Ancillary: Supports up to 2 Rx and 2 Tx simultaneously
- ST 2022-7 redundancy
- ST 2059-2 (PTPv2) accessed only via media network SFPs
- LLDP (Link Layer Description Protocol)
- DNS SD (service discovery)
- In-Band / media network (via SFPs): PTPv2/ST2059-2, control via NMOS
- Out-of-band / management network (via 1 GigE RJ-45): control via NMOS
- Single slot 8-lane PCIe 4.0, Full height
- 2x SFP cages supports 10 GigE or 25 GigE SFPs*
- macOS, Windows, and Linux Support
- Three year warranty

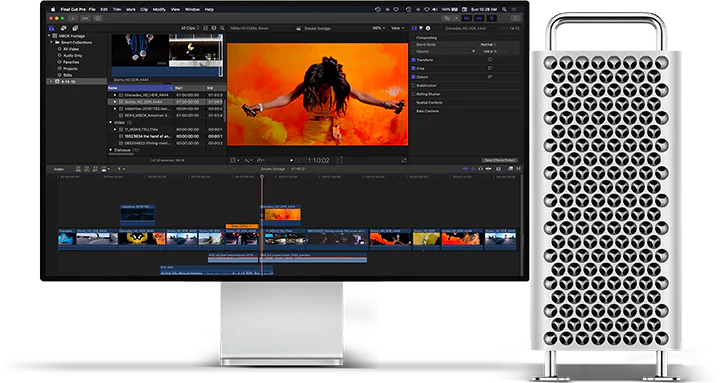

Wide Software Compatibility
AJA’s robust drivers and Desktop Software suite make the KONA IP25 compatible with a wide range of creative and workflow applications. It seamlessly integrates with leading NLE, compositing, and streaming software, ensuring smooth operation with the tools you rely on daily. With industry-best plug-ins and AJA’s trusted software, including AJA Control Room for capture and playout and AJA Control Panel for I/O configuration and control, the KONA IP25 delivers a reliable and efficient workflow experience.
KONA IP25: The New Standard for Seamless SMPTE ST 2110 I/O
The KONA IP25 seamlessly integrates into any SMPTE ST 2110 infrastructure, bringing the trusted KONA experience to modern IP-based workflows. It supports the full SMPTE ST 2110 suite of standards, ensuring smooth handling of uncompressed video, audio, and ancillary data:
- ST 2110-10 – System Timing
- ST 2110-20 – Uncompressed Video
- ST 2110-21 – Traffic Shaping for Uncompressed Video
- ST 2110-30 – PCM Audio
- ST 2110-40 – Ancillary Data
Additionally, the KONA IP25 supports ST 2022-7 for both Rx and Tx using dual 25G SFPs, providing hitless redundancy for reliable broadcast ingest and playout workflows.
